WST-138

16.09.2025

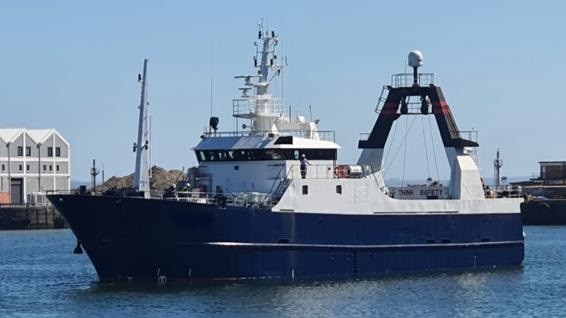

TypeWet Fish Trawler / twin trawling possibility
Built1997, Astilleros Zamacona SA, Spain
ClassDNV
Dimension43,9 x 10,5 x 4,85 L.P.P 36,6 m
Main Engine1 x MAN 12V23/30A – 1920 kW at 900 RPM – Complete overhaul September 2025
Fresh Water Cooling via plate coolers
Aux EngineCummins KTA19M4 – 404kW
Shaft GenStamford – 1400 KVA, 1184 kW, 2252 A
Harbour GenCummins 6B5-9GM
GearboxMAN B & W ALPHA DIESEL. 52V027
Factory/ProcessingThe factory is fitted with a hake fresh fish H & G factory including:
4 x hydraulic gates from the stocker pond onto the transport conveyors.
2 x rotary washers.Sorting belt.Piano heading machine
Cooling2 x small BITZER compressors for the fish hold.
1 x small BITZER compressor for the provisions room. Flo-ice plant mounted in compartment in 2015, trawl deck starboard forward – Compressor needs to be added to have in full operation.
Deck EquipmentUlstein low pressure hydraulic winch system:
2 x main warp drums 2000m x 24 mm 6 x sweep winches 2 x Gilson winches 2 x side hook winches 2 x cargo winches 1 x outhaul winch   3rd main winch in position but not in use. – possibility for twin trawling.
ElectronicsAll Modern
AccommodationFor 27 persons.
VariousTurbo Charger Complete overhaul September 2025
